HMI430 - Controller with 4.3" touch screen

NOTICE: We are updating our website. For product enquiries and orders please contact us directly.
NOTICE: SPLat Controls has moved. We are now at 1/85 Brunel Rd, Seaford, 3198. map

SPLat is a system of industrial strength, professional quality embedded controllers designed for Original Equipment Manufacturers. SPLat has been an major enabler for many companies worldwide, thanks to cost effective designs, excellent support and the ability to transition painlessly from off the shelf products for early-stage work to a custom SPLat for volume production.

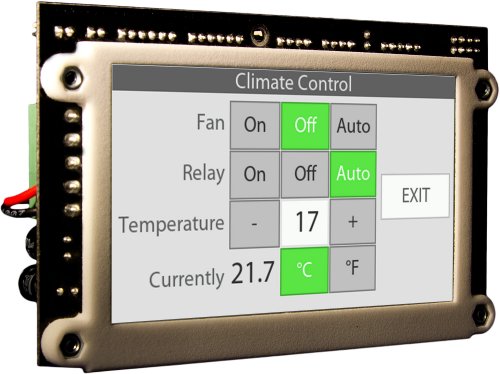

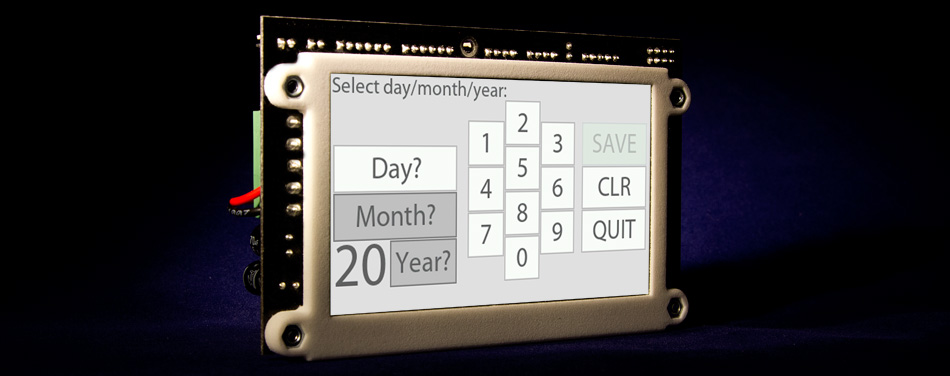

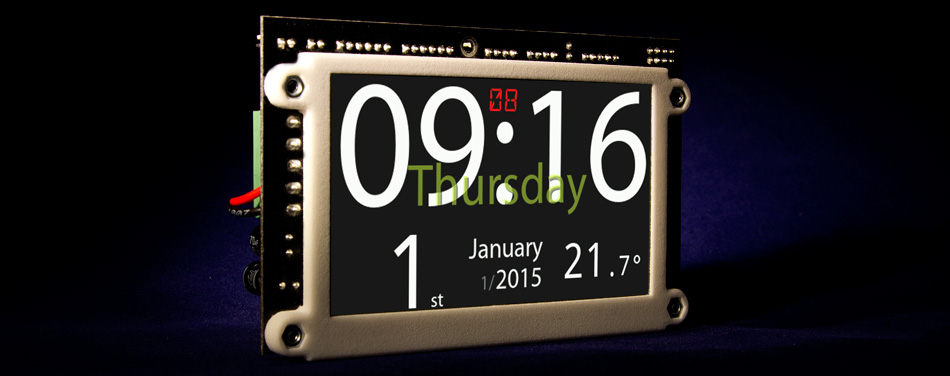

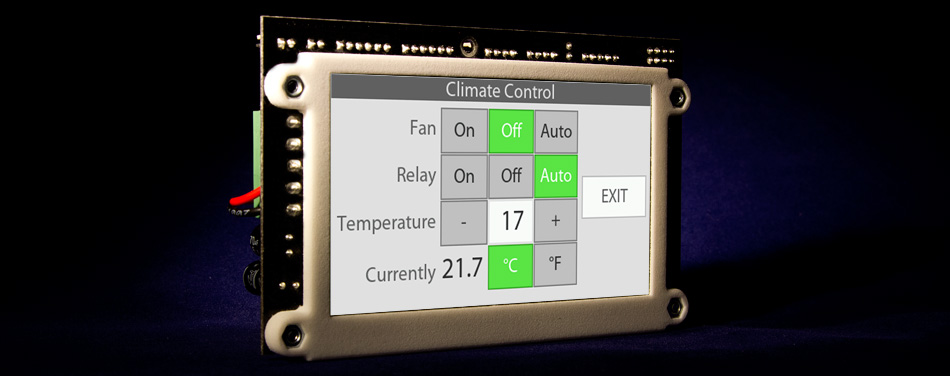

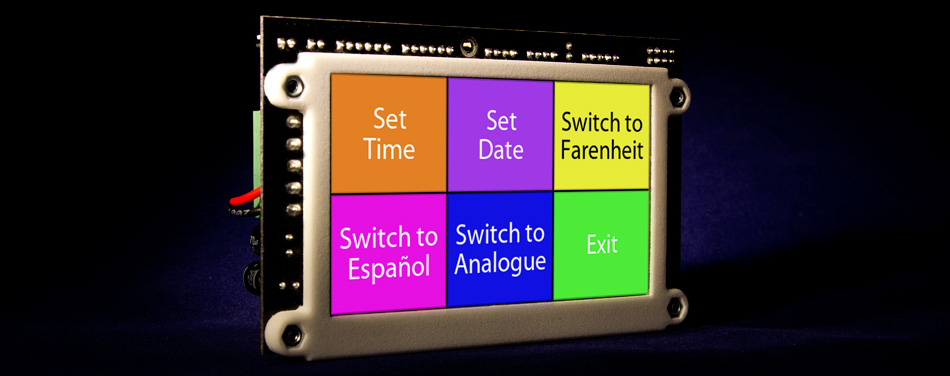

HMI430 Demo Screen HMI430 Demo Screen HMI430 Demo Screen HMI430 Demo Screen

This is the controller of your dreams, it will turn your product from an also ran into the next big thing that everyone will want. Why? Well a typical industrial touch screen is northing more than a touch screen. It relies on a PLC to provide the control functionality. So you need to pay for two things and program two things.

This is where the HMI430 is different, it is first and foremost a controller, with digital and analog I/O's and an advanced touch screen built-in. So you buy and program just the one device.

We've paid attention to the things that matter most. You can have any size or style of text, just get an OpenType or TrueType font, run it through a SPLat font generator, drag it to the HMI430 file system and, bingo, you've now got that font on your screen with no jagged edges. Text looks terrific.

Displaying images is even easier. Simply drag and drop PNG images into the HMI430 file system. The HMI430 will display the image with blending, simply refer to it by name in your program. But wait, there's more. Images may be used as buttons. The HMI430 will automatically find the edges and only respond when someone actually touches the button image, so you can have circular buttons or any odd shape.

Would you prefer something a little bigger? We've got you covered with the 7" HMI700. It's just like the HMI430, only BIGGER

"Reduction of production costs while maintaining superior quality is an ongoing challenge for a microbrewery. The HMI430 enabled me to control and coordinate multiple processes behind an interface that was easy to understand and use. The number and variety of I/O ports all coordinated with a simple multitasking interface enabled me as an application-focused developer to achieve much better efficiency and control.
When I ran into challenges, SPLat Controls offered exceptional customer support guiding me through development and product integration."

Simon Ross, MicroBrewTech Ltd, New Zealand.

Features

The HMI430 includes all of these features as standard:

Reference

HMI430
HMI430OEM
Controller, 4.3" Colour Touchscreen with backlight, 8 BIO @ 500mA each (2.5A total max), 2 analogue in each temperature/current/voltage selectable, 1 analogue out 0 - 10V, 2 TTL serial, 1 RS485 serial, Xwire, RTC, USB
  • 1 - 4AUD198exGSTUSD≈150
  • 5 - 9AUD192exGSTUSD≈146
  • 10 - 24AUD186exGSTUSD≈141

Shipping weight:
166g / 5.9oz

HMI430
HMI430DK
HMI430 + TerminalBoard + USB Cable. Controller, 4.3" Colour Touchscreen with backlight, 8 BIO @ 500mA each (2.5A total max), 2 analogue in each temperature/current/voltage selectable, 1 analogue out 0 - 10V, 2 TTL serial, 1 RS485 serial, Xwire, RTC, USB
  • 1+AUD215exGSTUSD≈163

Shipping weight:
280g / 9.9oz

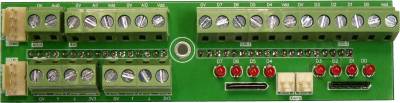

HMI430 TB
HMI430 TB

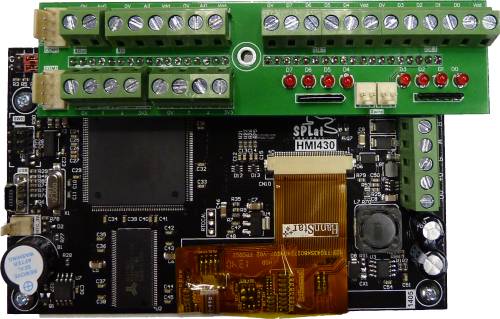

Give your HMI430 some screw terminals. This board plugs in and is secured with a screw.
  • 1+AUD24exGSTUSD≈18

Shipping weight:
60g / 2.1oz

USB A to MiniB
USBA-MINIB
USB A to MiniB, 1 metre (appearance may vary)
  • 1+AUD7exGSTUSD≈5.25

Shipping weight:
35g / 1.2oz

HMI430
HMI430PNR
HMI430 Post nuke repair. SPLat will either repair or replace the controller and LCD if they have been damaged.
  • 1+AUD95exGSTUSD≈72

Shipping weight:
166g / 5.9oz

missing image
4.3" Colour LCD
Replacement 4.3" colour touch screen LCD.
  • 1+AUD30exGSTUSD≈23

Shipping weight:
70g / 2.5oz

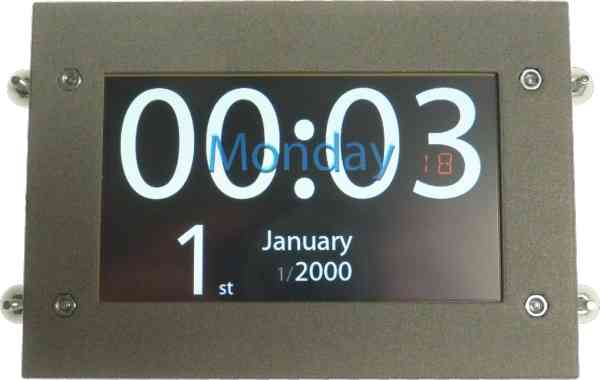

HMI430 Panel Bezel
HMI430PBEZ
HMI430 panel bezel, with 4 mounting wings, 8 x 12mm screws & 8 x nuts. This is 3D printed so the finish is good but not perfect.
  • 1+AUD25exGSTUSD≈19

Shipping weight:
0g / 0oz
