SX10508 - Data Logger for SD memory card

NOTICE: We are updating our website. For product enquiries and orders please contact us directly.
NOTICE: SPLat Controls has moved. We are now at 1/85 Brunel Rd, Seaford, 3198. map

The SX10508 SD Logger is a fully programmable SPLat controller with a built in API allowing that allows full access to a SD Card. It arrives ready to write log files from either another SPLat controller or from any serial data device.

Logging may be performed via Xwire or via the TTL level RS232 port. The latter allows the logger to be connected to almost any 3rd party equipment. The logger is quite small, being the same physical size as our CC18 controller.

Features

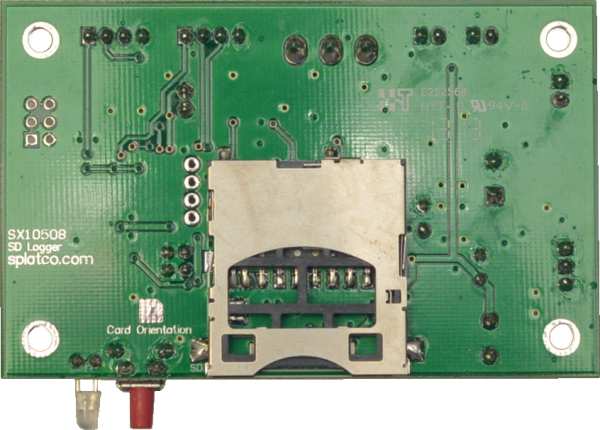

SX10508 back view
The SD card socket is on the rear of the SX10508
  • Fully programmable in SPLat
  • Two independant TTL level RS232 ports
  • Supports FAT12, FAT16 and FAT32
  • Can store ASCII or binary data
  • Logging via serial or Xwire
  • Supports TTL and RS485 Xwire
  • Full control over file names
  • Possible to store data as CSV file
  • Automatic new file trigger
  • Onboard realtime clock, factory calibrated
  • Button for safe ejection
  • Status light

Sample program

The SX10508 ships with a built-in program that:

You may customise this program anyway you like. Simply change the baud rate, or add new features. Download it from here.

Technical documentation 3D Model

SX10508 SD Data Logger

Connectors included but not shown

SX10508
Data logger, SD
  • 1 - 4AUD69exGSTUSD≈52
  • 5 - 9AUD66exGSTUSD≈50
  • 10 - 24AUD63exGSTUSD≈48

Shipping weight:
41g / 1.4oz
