Embedded programable Logic controls for OEMs



Add-on functionality

The SPLat system features the largest and fastest growing range of special-function hardware add-ons on the planet. We have


Add a Touch of SPiceTM

SL99 showing SPice board
Selected SPLat controllers are designed to accept one SPice board at a time.
The Touch of SPice concept provides for a range of small, generally simply but very useful add-on boards that can be used to provide special-purpose functionality to a SPLat controller. This gives you access to functions that might otherwise be difficult, expensive or all but impossible to source any other way. Our range of off the shelf SPice boards is growing all the time. Not only that, if you need a function we don't have we can make you a custom SPice board for a minor fraction of what a full custom controller could cost to develop. A custom SPice board can be cost-effective right down to a single batch of 15 units!

Xwire: possibilities unlimited


Xwire allows 10 or more controllers and/or peripherals to be interconnected

Our new Xwire system bus allows multiple controllers and/or peripherals to be interconnected. It features simple, low cost wiring and easy programming. Xwire peripherals are "smart" peripheral boards, in that they have their own onboard processor and can therefore potentially provide very sophisticated functionality.

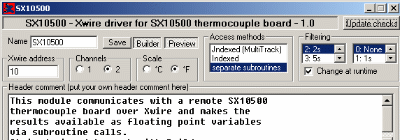

Xwire peripherals (most, if not all) will be supported by Active TemplatesTM. These are programming tools, specific to each product, that make programming the peripheral extremely easy. Active Templates allow you to enter your specific needs into an on-screen wizard-like form, and will then automatically generate the SPLat code to do what you want. More information: Xwire Active Templates
SPice boards
SPice boards sit piggy-back on top of a compatible controller. There can only be one SPice board at a time.

Fluid level


Temperature

2 channels of fluid level (conductivity) switching and 3 channels of thermistor temperature measurement.

Compatibility: MMi20x, MMi99, SLxxx, MS12x
SPice10200
$70 Qty 1
>>more info


4 push
buttons

Adds 4 push buttons (like the ones on MMi200 and MS12x). This board attaches to the controller via a flying lead, so you can mount it behind a face plate.

Compatibility: MMi20x, MMi99, SLxxx, MS12x
SPice10203
$30 Qty 1
>>more info


Current
transformer

A 5A 50/60Hz current transformer lets you monitor motor currents etc. This board also has two potentiometers for arbitrary "analog" parameter settings.

Compatibility: MMi20x, MMi99, SLxxx, MS12x
SPice10204
$82 Qty 1
>>more info


Fluid level
switching

Six channels of fluid level (conductivity) switching. Imagine the uses in pump controls or applications with tanks or vats of liquid.

Compatibility: MMi20x, MMi99, SLxxx, MS12x
SPice10205
$75 Qty 1
>>more info


Analog I/O

Add 2 analog inputs and up to 2 analog outputs. This is intended primarily as an analog I/O option for the MS12x, but can also be used to add more analog to the other controllers.

Compatibility: MMi20x, MMi99, SLxxx, MS12x
SPice10211
$62 Qty 1
>>more info


AC voltage
measurement

Measure 3 channels of 50/60Hz AC voltage. This board is intended mainly for 3-phase voltage monitoring in applications like genset control.

Compatibility: MMi20x, MMi99, SLxxx, MS12x
SPice10212
$62 Qty 1
>>more info


DC motor
speed control

Two channels of variable speed drive for small permanent magnet DC motors rated up to 3A at 24V.

Compatibility: MMi20x, MMi99, SLxxx, MS12x
SPice10213
$87 Qty 1
>>more info


Potentiometer
interface

Ideal where you need "analog" user controls or other potentiometer type inputs. Includes one potentiometer onboard and accommodates three more user supplied potentiometers offboard

Compatibility: MMi20x, MMi99, SLxxx, MS12x
SPice10214
$28 Qty 1
>>more info


8 channel
analog input

Measure up to eight analog inputs using this multiplexer board. Available in 0-10V and 0-20mA versions

Compatibility: MMi20x, MMi99, SLxxx, MS12
SPice10218
$40 Qty 1
>>more info


Half Duplex 433/915MHz
Radio Communications

Wireless communications between SPLat Controllers or PC. Available in 433MHz or 915MHz versions.

Compatibility: Everything
SPice10219
$90 Qty 1
>>more info


Xwire peripherals
Xwire peripherals are mounted independently of the controller. They work on Xwire compatible controllers. Up to 10 Xwire compatible boards can be networked.

Thermocouple

Dual type K thermocouple interface measures up to 1024°C. Note: This is a new product that replaces the SPice10209

Compatibility: Xwire, Xwire over RS485
SX10500
$125 Qty 1
>>more info


Distance and temperature

This SPLat Xwire peripheral board has onboard ultrasonic range measurement and will support an optional plug-in non-contact temperature sensor.

Compatibility: Xwire, Xwire over RS485
SX10501
$100
>>more info


Temperature and Humidity

This SPLat Xwire can measure temperature and humidity and will support an optional plug-in non-contact temperature sensor.

Compatibility: Xwire, Xwire over RS485
SX10502
$75
>>more info


Fluid level switch + analog I/O

5 fluid level channels; 2 0-10VDC analogue outputs; 3 analogue inputs.

Compatibility: Xwire, Xwire over RS485
SX10504
$87
>>more info


Analog output

4 analog outputs, 0-10VDC. 2 are 10-bit, 2 are 8-bit.

Compatibility: Xwire, Xwire over RS485
SX10505
$87
>>more info


Pressure Sensor

Dual port pressure sensor.

Compatibility: Xwire, Xwire over RS485
SX10506
$99
>>more info


pH Measurement

ORP Measurement

Allows your SPLat controller to measure the pH or ORP of liquids. Industrial grade, fully isolated, precision design.

Compatibility: Xwire, Xwire over RS485
SX10507
$110 Qty 1
>>more info


Data Logger

Gives data logging ability to your SPLat controller with the logs stored on a SD memory card.

Compatibility: Xwire, Xwire over RS485
SX10508
$252 Qty 1
>>more info


Internet interface

Connects your SPLat controller to the Internet for remote monitoring and control.

Compatibility: Xwire, Xwire over RS485
SX10509
$99 Qty 1
>>more info
