This section covers the electrical connection between a SPLat board and an LCD module connected to its LCD port.

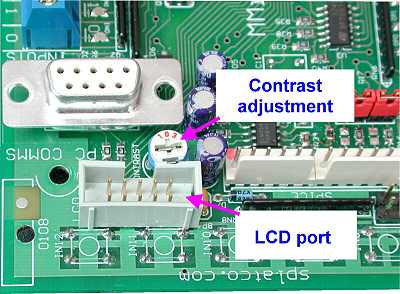

This covers the case of a SPLat board with a connection (port) for a bare LCD module. Such a port will be labeled "LCD" and will have a 10-pin box header, as illustrated. It will also have a contrast adjustment potentiometer.
